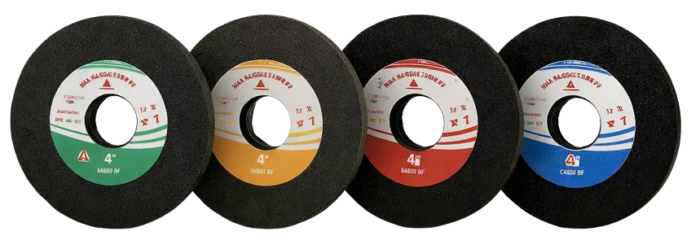

SWING FRAMES PLAIN WHEELS
- Coarser grit used with hard grades
- Used for heavy stock removal
- Aluminum Oxide (AI2 03) abrasives for ferrous material
- Silicon Carbide (SiC) abrasives for non-ferrous material
Applicable Areas
-
Automotive and Rail C0iI springs
-
Foundries
-
Forging
-
Steel Fettling Shops
SILVER
- Excellent free cutting action
- High Safety
DIAMOND
- Good life.
- Very High material
removal rate - High Safety.
GOLD
- High performance grinding.
- Special grain with bond Combination.
- Optimum balance of cut rate & life.
- High Safety.
PLATINUM
-
It gives moderate cut-rate while it lasts longer.
-
Long wheel life
- High machine life
- High Safety.
Sizes & Specifications
| Size in inch | Diameter in mm | Thickness | Bore in mm | Speed in RPM |
|---|---|---|---|---|
| 10” | 250 | 40/50 | 38.1/50.8 | 3200 |
| 12” | 300 | 40/50 | 38.1/50.8 | 3000 |
| 14” | 350 | 50 | 50.8 | 2480 |
| 16” | 400 | 50 | 38.1/50.8/152.4 | 2260 |
| 16” | 400 | 65 | 152.4 | 2260 |
| 18” | 450 | 50 | 50.8 | 2010 |
| 18” | 450 | 50 | 152.4 | 2010 |
| 20" | 500 | 75 | 203 | 1810 |
Any Special purpose wheel size from 25mm to 500mm can be manufactured as per customer s requirement.
