Reinforced Cut-Off Wheels
- Fiber-Glass reinforced wheels
- Used for cutting ferrous and non-ferrous material
- Used for portable or fixed machines
- To be used for cutting of stationary work piece
- Cutting plane can be controlled by hand
- Recommended speed 60 m/s to 80 m/s
Applicable Areas

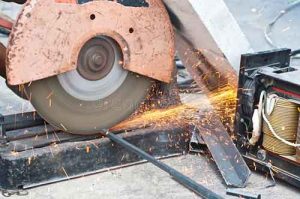

Parting and cutting of bars, tubes, pipes, metal sheets, angles
Fabrication
Construction & Structural Steel
Railways & Shipping
Sizes & Specifications
| Size in Inch | Diameter in mm | Thickness in mm | Bore in mm | Speed in RPM |
|---|---|---|---|---|
| 2.5 | 63 | 3 | 10 | 24250 |
| 4’’ | 100 | 4 | 12.7 | 15280 |
| 7’’ | 180 | 3.2/4 | 22.23 | 8500 |
| 9’’ | 230 | 3.2 | 22.23 | 6700 |
| 12’’ | 300 | 3.2 | 25.4 | 5090 |
| 12’’ | 300 | 5/6/7 | 25.4 | 5090 |
| 14’’ | 350 | 2.8/3.2 | 25.4 | 4360 |
| 14 | 350 | 5/6/7 | 25.4 | 4360 |
