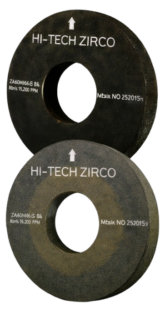

HOT PRESS (HI TECH) GRINDING WHEELS
Zirconia Alumina is the Crystallized result of aluminium oxide and zirconium dioxide. The result is a Coarse abrasive grain that works well for grinding down medium -to-coarse materials. Zirconium is firmer than aluminium oxide, Can endure astonishingly heavy loads, and usually lasts longer than aluminium oxide products as well.
As the name indicates while manufacturing the Hot Press Grinding Wheel, the heat treatment is given to the wheel while moulding at the specially designed Hydraulic Press.
Applicable Areas
-
Automotive and Rail coiI springs
-
Foundries
-
Forging
-
Fettling Shops
Features
-
High performanCe grinding
-
Special grain with bond combination
-
Optimum balanCe of cut rate and life.
-
High Safety
- Zero Dust.
Sizes & Specifications
Currently we manufacture the Billet Grinding Wheel in following size.
| Size in Inch | Diameter in mm | Thickness in mm | Bore in mm | Speed in RPM |
|---|---|---|---|---|
| 14" | 350 | 50 | 38.1/50.8 | 2480 |
| 16” | 400 | 50 | 152.4 | 2260 |
| 20“ | 500 | 50 | 203.4 | 1810 |
Key Benefits of Hot Press Grinding Wheels
-
High Performance — Material removal rate is high along with more output compared to regular Resin Bonded Grinding Wheels.
-
Cost Effective – Performs 10x more than regular Resin Bonded Grinding Wheels compared to price of 5x more than regular Resin Bonded Grinding Wheels.
-
Time Saver – Mounting time of wheel is decreased as lesser wheels required.
-
Dust Free – Zero dust C0mpared to regular Resin Bonded Grinding Wheels leads a clean work place minimizing risks of breathing diseases.
