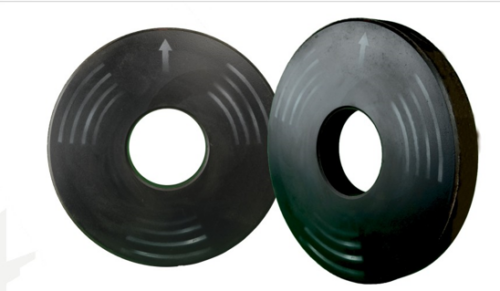

BILLET GRINDING WHEEL
Billet Grinding is the conditioning of billets, blooms, slabs and ingots in large and medium size steel industries to remove defects such as surface cracks, seams, pin holes, slag patches etc. The advantages of this operation are reduced cost and higher productivity as compared t0 Scarfing and milling. Billet grinding wheels are large wheels of 400mm diameter and above, upto 600 mm, Cold Pressed resinoid bond wheels are available for speeds upto 48 m/s. These are used on swingframe grinders with head leads up to 200 kgs. Hot Pressed resinoid bond wheels are available for speeds of 45, 60 & 80 mls
Sizes & Specifications
Currently we manufacture the Billet Grinding Wheel in following size
| Size in Inch | Diameter in mm | Thickness in mm | Bore in mm | Speed in RPM |
|---|---|---|---|---|
| 24" | 610 | 76 | 203 | 80m/s |
Key Benefits of Billet Grinding Wheels
-
High Performance — Material removal rate is high along with more output compared to regular Resin Bonded Grinding Wheels.
-
Cost Effective — Performs more than regular Resin Bonded Grinding Wheels. Time Saver —Mounting time of wheel is decreased as lesser wheels required.
-
Dust Free — Zero dust compared to regular Resin Bonded Grinding Wheels leads a clean work place minimizing risks of breathing diseases.
